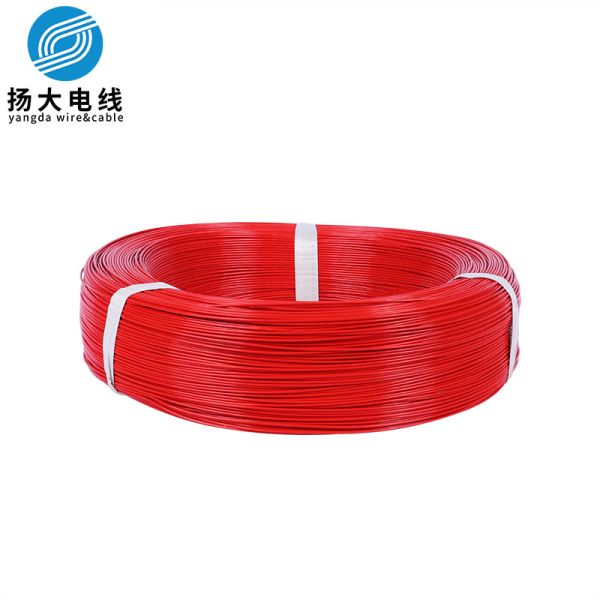

    Silver Plated Copper Extruded Insulated Wire PFA Insulation

    Ask Lasest Price
    Brand Name : YANGDA
    Model Number : 1709
    Certification : UL
    Price : 0.32USD PER METER
    Payment Terms : T/T
    Supply Ability : 2000000 METERS PER MONTH
    Delivery Time : 10DAYS
    • Product Details
    • Company Profile

    Silver Plated Copper Extruded Insulated Wire PFA Insulation

    UL Approved Voltage Resistance Motor Wiring UL1709 PFA Insulated Silver Plated Copper Extruded Wire

    1) Product: PFA WIRE
    2) Style No.: AWM1709
    3) Size: 36AWG ~ 10 AWG
    4) Rated Voltage: 600V
    5) Rated Temperature:-100°C~+250°C
    6) Conductor: tinned, silver or Nickel copper
    7) Insulation: PFA

    8) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc

    Rated Voltage: 300V


    Rated Temperature:200deg C


    Insulation material: PFA


    Conductor material: Tinned or Bare Copper


    Color: White,Black, Red, Blue, Yellow, Brown, Yellow/Green, etc.. also can same as customer requirements.


    Package : 610M/Roll. 5Rolls/Carton


    Style 1709Insulated Wire.

    Rating200 deg C, 300 Vac, Horizontal flame.
    Conductor32 AWG - 10 AWG solid or stranded round.
    InsulationPFA, 13 mils min average, 11 mils minimum at any point.
    StandardAppliance Wiring Material UL 758.
    MarkingGeneral.
    UseInternal wiring of appliances or electronic equipment.

    Product features
    Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

    high voltage resistance, aging resistance, long service life and soft and easy to install.


    Applications
    * Widely used in lighting, household appliances, , lamps.
    * electric appliances, instrumentation, motor wiring and electronics.
    * gas appliances and other high-temperature environment.

    UL1709/1726 pfa WIRE
    ConductorInsulation

    Electrical

    Properties

    Packing
    AWG

    Conductor

    Construction

    NO.XΦmm

    Diameter mm

    Insulation

    Thickness mm

    Outer

    Diameter mm

    Max

    Conductor

    Resistance

    DC20℃Ω/km

    M/coil
    1037*0.433.0100.333.673.546305
    1219*0.492.4500.333.115.640305
    1419*0.371.8500.332.518.960305
    1619*0.301.5000.332.1614.600305
    1719*0.261.3000.331.9618.360305
    1819*0.231.1500.331.8123.200305
    2019*0.180.9000.331.5636.700305
    201*0.80.8000.331.4635.200305
    2219*0.160.8000.331.4659.400610
    221*0.650.6500.331.3156.400610
    247*0.200.6000.331.2694.200610
    241*0.50.5000.331.1689.300610
    267*0.160.4800.331.14150.000610
    261*0.40.4000.331.06143.000610
    287*0.120.3600.331.02239.000610
    281*0.320.3200.330.98227.000610
    307*0.10.3000.330.96381.000610
    301*0.2540.2540.330.914361.000610
    327*0.080.240.330.9664.8610
    321*0.200.20.330.86588.3610
